COSA SABBIARE:

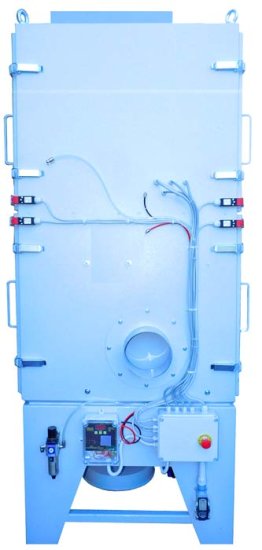

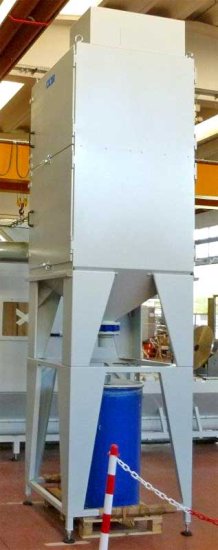

SUCTION CHAMBER AP1000

SUCTION CHAMBER AP1000

SUCTION CHAMBER AP1000
SUCTION CHAMBER AP1000
SUCTION CHAMBER AP1000
SUCTION CHAMBER AP1000
Codice: A1000601
N. 4 Self cleaning filter cartridges.

        Overall dimensions : Height 2450; Large 900; Width 950



TECHNICAL SPECIFICATIONS

  • N.4 Filter cartridges in Microcellulose or Polyester fiber
  • Centrifugal fan 3 Kw
  • Filtering surface 40mq.

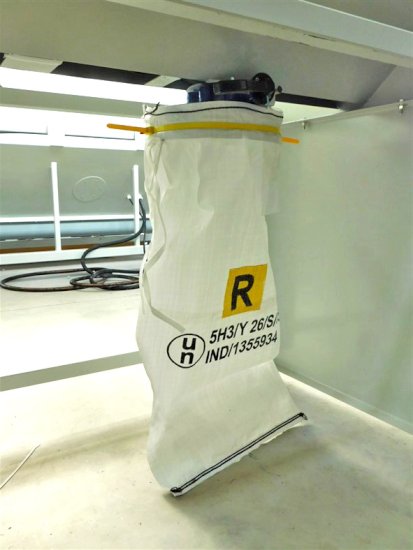

  • Removable container with wheels for the deposit of dust
  • Capacity 2400mc/h
  • Automatic cleaning system with compressed air and programmable Timer
  • Volt 380; Hz 50.

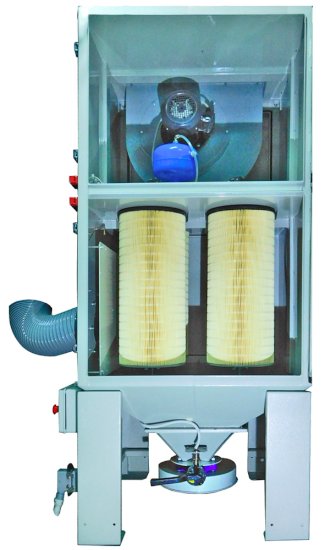

Polluted air enters the filter through a pre-chamber which anables separation of separation of the biggest  particles; the flow then goes through the cartridges depositing the contaminant outside, while  clean air in discharged from filter head. An electronic sequential cycle provides for cartridge  cleaning with compressed air.
